by mjlorton
Urednik: alexa_pg
Kod: Označi sve

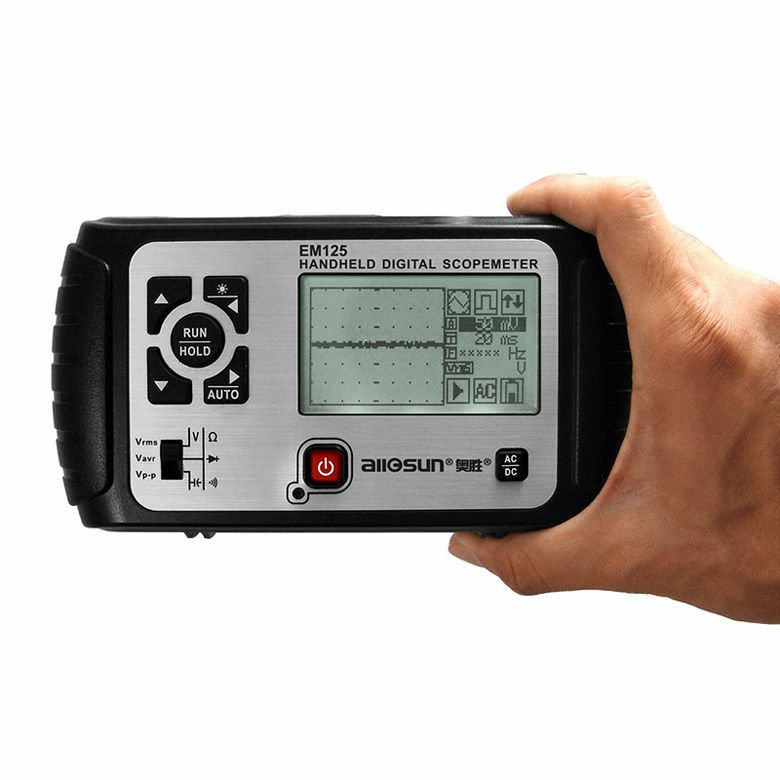

http://vi.vipr.ebaydesc.com/ws/eBayISAPI.dll?ViewItemDescV4&item=351669144280&t=1511416886000&tid=10&category=104247&seller=trade_spotting&excSoj=1&excTrk=1&lsite=0&ittenable=false&domain=ebay.com&descgauge=1&cspheader=1&oneClk=1&secureDesc=0
Ovo gore je upit sa početka teme,... znamo svi da su "osciloskopi" iz naslova igračke,... no, za rudimentarne stvari (kao što je provjera filtracije), očito, mogu poslužit.

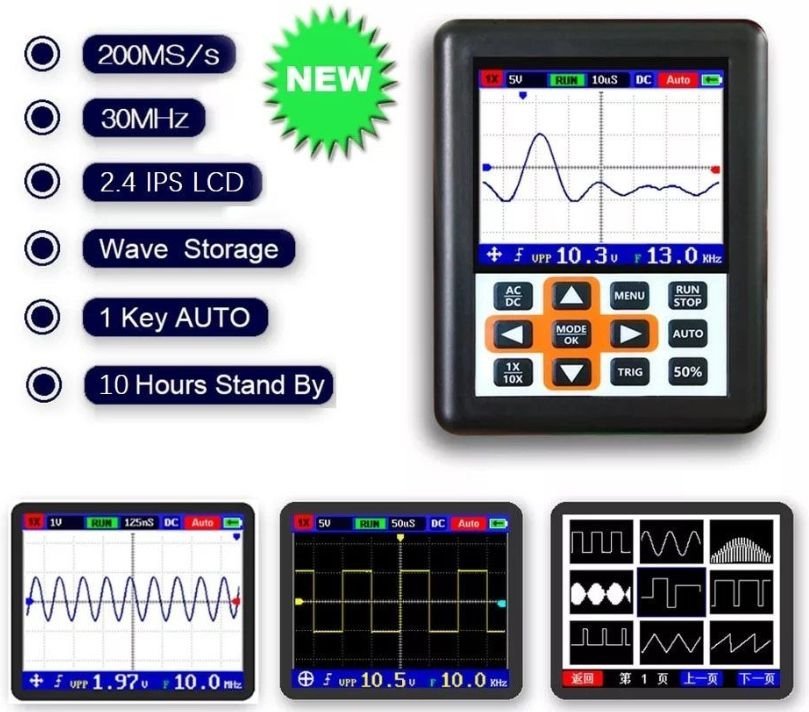

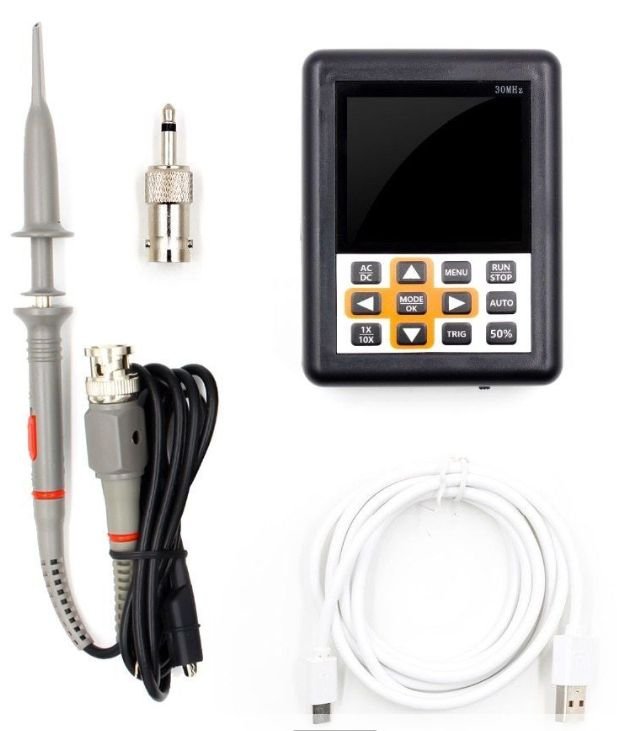

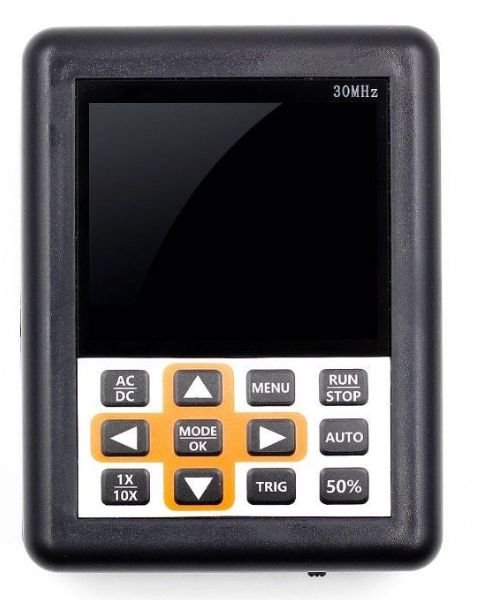

Key features:
1:Memory compression technology, waveform refresh screen does not flicker
2:Afterglow display technology
3:2.4 inch color display screen with IPS technology
4:30MHz analog bandwidth @ 200MS/s sampling rate
5:Fast waveform storage
6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures
7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions
8:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V
9:Up to 11 parameters measurement:VPP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time
10:At any time, the waveform display (pause function) is frozen
11:Equipped with high efficiency one button AUTO
12:Complete triggering function (single, normal, automatic)
13:Built in 3000mAh rechargeable lithium battery can be continuously charged for 10 hours at one time
14:Day mode and night mode
15:Ultra small volume, easy to carry
Specifications:
1:Analog band width: 30MHz
2:Maximum real time sampling rate: 200MS/s
3:Vertical sensitivity: 50 mV/div ~ 200 V/div
4:Horizontal time base range: 100mS/div ~ 125nS/div
5:Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
6:Storage depth: 128KB
7:Input resistance: 1M
8:ADC precision: 8bits
9:Coupling mode: AC/DC
10:Trigger mode: Single, Normal, Automatic
11:Trigger edge: Ascending/descending edge
12:External trigger voltage 0 – 40 V
13:Display: 2.4 inch - IPS - 320*240
14:Power supply: 3000 mAh lithium battery

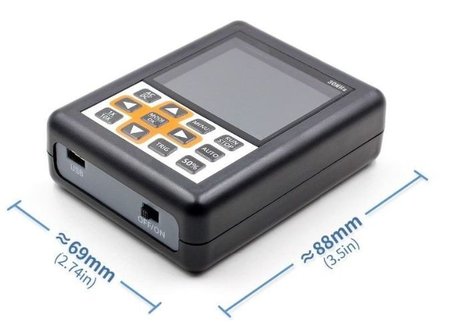

15:Size: 90 x 70 x 28 mm
16:Weight: 200g
Kod: Označi sve

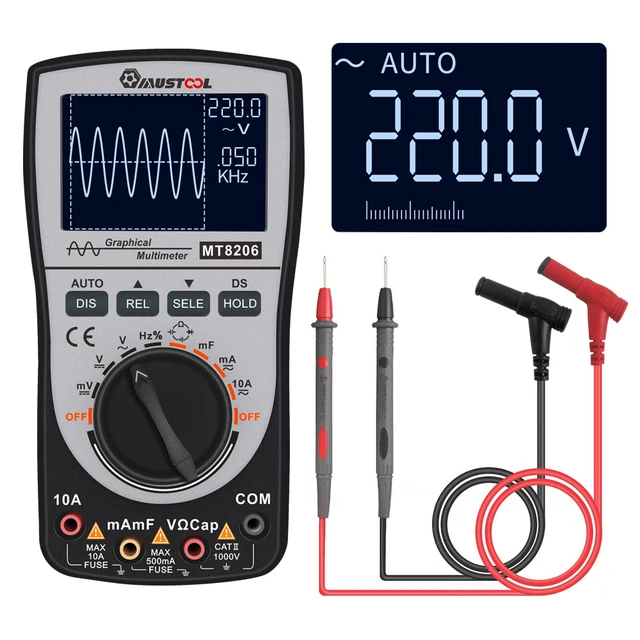

https://www.aliexpress.com/item/MUSTOOL-Upgraded-MT8206-2-in-1-Intelligent-Digital-Oscilloscope-Multimeter-Current-Voltage-Frequency-Tester-Analog-Bar/32946430125.html?spm=a2g0s.13010208.99999999.295.4a333c00TkEyfP
