LA78040 = LA78041 - Dali je ovo isto

nessha · Post napisao **nessha** » 06 Jun 2008, 20:38

Kao sto rekoh u naslovu, da li je ovo isto ?

kisko · Post napisao **kisko** » 06 Jun 2008, 21:03

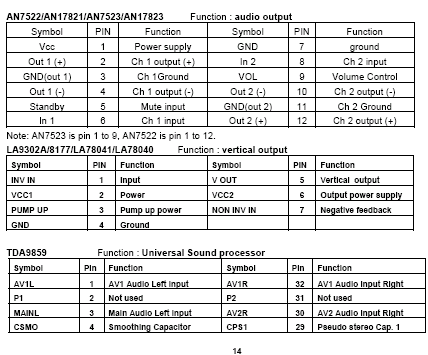

Pogledaj u ovom SM ,strana 14... koliko se sećam da je u pitanju jedino dali je za ekran 90 ili 110 (otklonska)
http://www.fanzo.org/forum/viewtopic.php?p=53235#p53235

bolle86 · Post napisao **bolle86** » 06 Jun 2008, 21:16

LA78040/LA78041 are vertical scan output stage power amplifiers. But there is a little
bit difference between the two amplifiers, that is, LA78040 has supply voltage of 24V and output
current of 1.8AP-P while LA78041 has supply voltage of 30V and output current of 2.2AP-P.

nessha · Post napisao **nessha** » 06 Jun 2008, 21:38

Da,da, ocito su pin-kompatibilni... nesto slicno kao TDA8351 i TDA8356...Thanks !

verica · Post napisao **verica** » 07 Jun 2008, 01:13

slobodno mozes da ugradis i TDA8172 provereno

nessha · Post napisao **nessha** » 08 Jun 2008, 00:13

lale · Post napisao **lale** » 10 Jun 2008, 13:19

pomaže li ovo
